We understand how important the decision of choosing the best fence to keep your animals safe is.
We have created this page, to allow you to acquaint yourself with the Electobraid products, their purpose and costs.
Please feel free to order from this page.
Any Questions? Call us Toll-Free at 1-877-300-2638
We are always pleased to help.
SPECIAL OFFER* - FREE SHIPPING on Orders Over $140
Use Coupon Code – ELECT140
Electrobraid Reel, 600′ & 1000′
ElectroBraid™ rope is made from high quality braided polyester fibers that won’t unravel or break. The high strength braid protects the copper wire conductors that are formed in helical coils like springs to allow for bend and stretch. The copper wires won’t break up to 1,000 pounds tension.
ElectroBraid™ combines resilience with barrier strength. It is offered in 3 attractive patterns/colors.
|
Electrobraid – 600′ Reel
|
Electrobraid – 1000′ Reel
|
||
|
$109.99 per reel
|
$199.99 per reel
|
||
|
White
|
 |
 |
|
|
Checkered
|
 |
|
|
|
Black
|
 |
|
|
Required Accessories
 |
Electrobraid Installation Video – FREE |
|
 |
Electrobraid Installation Manual – FREE
|
|

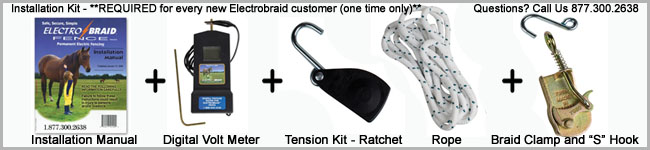

Electrobraid Installation Kit
| Electrobraid Installation Kit – 1 kit – $37.99 |
|
SPECIAL OFFER* - FREE SHIPPING on Orders Over $140
Use Coupon Code – ELECT140

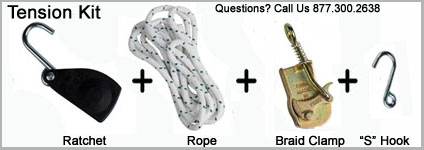

Electrobraid Tension Kit
The tension kit is a required tool for tensioning the Braid.
Note: Never use machinery to tension the Braid.
| Electrobraid Tension Kit – 1 kit – $21.95 |
|
Electrobraid Insulators
Roll of 50′
For installation of roller insulators at corner posts, trees, etc. Ensures there will be no pull-out under high tension, and works well on trees where the surface is not flat, and screws are not secure.
***Electrobraid No Longer Carries the Black Webbing -
This can be purchased from any local hardware retailer.***
Roller Insulators – Bag of 12
The roller style insulators are easy to install with either 2.5 in screws (Shown), or with the webbing and nails (or 1.5″ screws) for additional freedom of movement and better pull-out strength at corners and end-posts. The roller separates from the bracket to allow insertion of the Electrobraid rope without the need for a free end.
 |
 |
 |
 |
|
The Roller insulator is used to start or terminate a strand of Braid™ at an End Post.
|
For using trees for Corners, Ends and In-Line Posts (webbing sold separately).
|
For Corners or any change in direction which will cause strain on the insulator
|
The free floating roller design also makes tensioning easy, even around corners.
|
The strength and, UV stability, ensures a no maintenance 20 year installation.
Screws, Nails and Webbing Ordered Separately.
| BLACK Roller Insulators – Bag of 12 – $11.99 |
|
| WHITE Roller Insulators – Bag of 12 – $11.99 |
|
For Line Posts
Electrobraid Line Post Insulators – Bag of 25
Line Post Insulators may be used rather than the more costly Roller Insulators, for line posts, or simply to insulate the braid from coming into contact with anything that might otherwise ground it, such as the cross beam of an H-Braced Corner Post.
Available in either black or white.
 |
 |
 |
|
Used for Wood In-Line posts when the posts are in a straight line with no changes in direction – either side to side, or up or down.
|
Line-Post Insulator is also an economical insulator for brace posts
|
Line-Post Insulator can be used on existing wood, vinyl of pipe fences.
|
| BLACK HEAVY DUTY |
Black Heavy Duty Line Post Insulators – Bag of 25 – $8.99
WHITE Line Post Insulators – Bag of 25 – $8.99
For T-Posts
T-Post Insulators for Standard T-Posts
The T-Post insulators will fit any standard small, medium or large T-Posts and accommodates the Braid™.
| Electrobraid T-Post Insulators- Bag of 25 – $3.99 |
|
T-Post Toppers – Caps
T-Post Toppers – Caps
Note the T-Post cap which serves as an insulator for the top line of Braid™ as well as reduces the spear hazard T-Posts can represent
| Electrobraid T-Post Toppers/Caps Bag of 10 – $5.99 |
|
Offset Insulators – For Top Board Protector Braid on Existing Fences
 |
 |
|
2″ Off-Set Insulator
|
5″ Off-Set Insulator
|
|
Used to mount ElectroBraid™ on existing board or wire mesh fence to reduce stocking pressure and/or cribbing
|
This technique is most often called a top board protector. It is also useful for excluding predators by running several – low to the ground – strands of Braid™ on the outside of an existing fence
|
| 2″ Off-Set Insulators – Bag of 25 Black with nails- $3.59 |
|
SPECIAL OFFER* - FREE SHIPPING on Orders Over $140
Use Coupon Code – ELECT140
HEX Head Screws
Available in 1″ and 2″ lengths
 |
1 ” HEX Head Screws – Bag of 50 – $4.25 |
|
 |
2 ” HEX Head Screws – Bag of 50 – $8.99 |
|
Gate Kit
Spring Handle Gate Kit
For allowing up to a 20′ entry without the expense of a gate or labor involved with stabilizing a gate post. Allows easy access for heavy equipment.
One Gate Kit is needed for every strand of fence.
 |
 |
  |
|
A tree used as both a Gate post and an End Post. One Gate Handle Kit is required for each stand of Braid™ Not recommended for frequent use. |
 |
Gate Handles make the perfect, cost effective, 15 to 20 foot wide gate for infrequent use. Gives easy access to bring heavy equipment in or out of paddocks for seeding or fertilizing.
|
*colors may vary
Includes: *Gate Handle and *Activator Plate, 1 Roller Insulator, webbing,
2 copper splitbolts, and two 1″ Stainless Steel Screws
| Spring Handle Gate Kit – $17.40 |
|
Energizers
Solar and Standard Energizers
Please Click Here to Visit Our Energizer Page
for Critical Information in Selecting a Charger & Fence Minder
Electrical Accessories
Copper Split Bolt Connectors with Cable Ties – 10 per pkg.
Copper split bolt connectors with cable ties. To splice, terminate braid and for electrical connections.
 |
 |
 |
|
Split Bolts are used to begin or terminate a strand of Braid.
|
For electrical connections.
|
Splice lengths of Braid together.
|
| Copper Split Bolt Connectors – 10 pk – $24.99 |
|
Copper Lead-Out (Hook-Up) Wire – 250 Foot Reel
A copper, heavily insulated (15,000v) wire is necessary to prevent electrical leakage and electrolysis at connection points.
Note: NEVER substitute with wire that is not copper or properly insulated
This Lead-Out wire is used to wire your ground rods together and back to the charger..
(Copper Lead-Out is black wire)
| Copper Lead-Out Wire 250 Foot Roll – $84.99 |
Cut Off Switch – On/Off Switch
Used to turn sections of fences on/off. Also useful for trouble shooting sections of fence.
When installed where the lead-out wire connects to the fence, it allows the fence to be turned on/off with out having to walk back to the energizer.
On/Off positions easily seen from a distance
| Electrobraid Cut Off Switch- 1 each – $8.99 |
|
SPECIAL OFFER - FREE SHIPPING on Orders Over $140
Use Coupon Code – ELECT140
Neutral Plate Connector
A Neutral Plate Connector allows you to take power to or from an existing fence wire
(not Braid™) fence using the copper lead-out wire. The neutral plate connector keeps the copper wire from contacting the steel wire by means of a plate in between the two. This prevents the eventual shorting out of the wires from electrolysis (corrosion).
| Electrobraid Neutral Plate Connector – 1 each – $5.99 |
|
Fence Alert
Note: FenceAlert works with all “pulsed” energizers.
- Light flashes when low or intermittent voltages are detected
- Can be seen from up to 1 mile
- Powered by a CR2032 lithium button cell battery – readily available locally
- No ground lead required
- Up to 5 years battery life
- 1 year warranty
The FenceAlert can be used on permanent and temporary fencing. The tall clip allows the FenceAlert to be attached to fencing wire from 16 gauge to 8 gauge, or onto electric tape up to 1 1/2″.
| Electrobraid Fence Alert – 1 each – $17.95 |
|
Warning Sign
To Warn Visitors That The Fence is Electric
Electric fences should be marked every 200-300 feet. Check with your County Extension Office or, in a city, with the Clerk’s Office to find out your local electric fencing ordinances
The Brilliant Yellow Color attracts attention that the fence is electrified. The heavy plastic easily attaches to the braid strand.
| Electrobraid Fence Warning Sign – 3 per pkg – $5.99 |
|
6 Foot Copper Ground Rod with Brass Clamp
6 FT Copper Clad Ground Rod, Clamp, 2 Ferrules, 1 Cable Tie
Used to ground the system along with copper hook-up wire.
A minimum of three Ground Rods are required.
More maybe necessary with larger paddocks or dry soil conditions.
Note: Over 90% of problems with electrifying fences is attributed to insufficient grounding.
It is essential that you use copper clad ground rods, copper lead-out wire, and copper split bolts connectors
to ensure against electrolysis (corrosion) preventing your fence from functioning properly.
| 6 Foot Copper Ground Rod – 1 kit – $21.75 |
|
* FREE Shipping offer of Electrobraid orders of $140 or more is limited to the Continental United States.
Freight to Alaska, Hawaii & other offshore or remote locations will be quoted separately
SPECIAL OFFER* - FREE SHIPPING on Orders Over $140
Use Coupon Code – ELECT140
FREE SHIPPING* (Please allow 10 days for delivery but most orders ship within 24 hours)
on all Electrobraid orders totaling more than $140.00
Simply Use Coupon Code ELECT140 at checkout
Freight to Alaska, Hawaii & other offshore or remote locations will be quoted separately.
